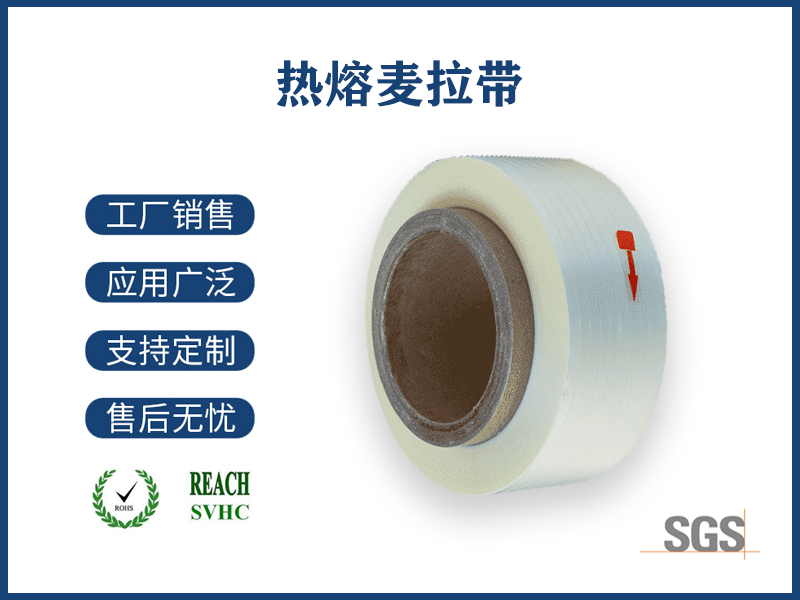

[產品說明]: 熱熔麥拉帶采用熱熔膠為MQ-40的高分子聚合物與PET聚酯帶均勻涂布而成，無毒無公害，符合最新版歐盟RoHS環保規章。保證能在較低預熱溫度下，具有良好的熱熔粘結效果，且保持長期穩定。

Product Description: Heat sealed polyester tape using hot-melt adhesive for MQ-40 high polymer and PET polyester coating, non-toxic and harmless, accord with the latest version of the EU RoHS environmental regulations. It has good effect of hot melt adhesive when the low temperature and can keep the stability for a long time.

[應用方式]: 主要應用于高頻信號線、射頻線、同軸電纜、電腦線、家用通信電纜等。利用線材外披覆壓出的熱能產生粘著，加固牢度好，密合優異，后段加工簡單。應用于多導體控制線材內部的絕緣用途，如信號線，同軸電纜，有線電視線材，USB3.1數據線，Series　ATA排線或是局域網絡電纜。

Application: Mainly used in high-frequency signal lines, RF cable, coaxial cable, computer lines, and communication cables and so on. Use thermal energy with out coating wire, good reinforce, excellent compactness and simple process. Apply to insulation function of multi-conductive control wire inner, such as signal wire, coaxial cable, TV wire, and USB3.1 data lines, series ATA wire or LAN cables.

一、主要技術指標：

Main specification:

熱熔材質: MQ-40, Proprietary Formulated Co-polymer

Hot melt materials: MQ-40, Proprietary Formulated Co-polymer涂布厚度: 精密涂布可自3μ起至最大25μ（3克至25克/平方米） Coating thickness: Precise coating 3μ-25μ (3g-25g/m2)

熱反應溫度: 攝氏110至135度

Temperature thermal reaction: 110°C-135°C

熱封強度: 一般約為250至400克/20mm，特殊結構與強化配方可達1500克/20mm以上

Heat-Sealing strength: normal=250~400g/20mm, strengthened>1500g/20mm

二、顏色：透明。

Color: Transparent

三、電氣特性：耐溫180℃，具有較高的機械強度，卓越的絕緣屏蔽性能，耐高溫、耐低溫，是理想的繞包材料，主要作為絕緣及隔離，同時可以增加特性阻抗。

Electrical characteristics: Temperature resistance of 180℃, with high mechanical strength, excellent insulation and shielding performance, high temperature resistance, low temperature resistance. It is an ideal wrapping material, mainly used as insulation and isolation, as well as increased characteristic impedance.

四、分切及包裝：分切最小寬度為2mm，采用軸裝形式；常規分切寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。

Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
